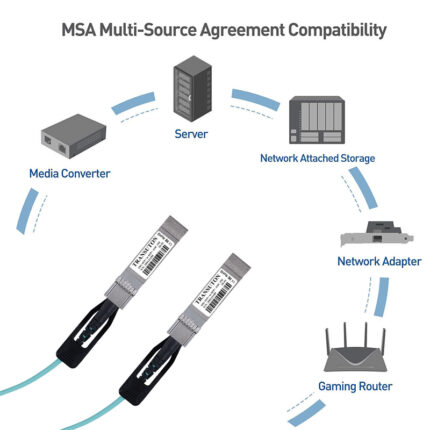

This 10G SFP+ to SFP+ AOC (Active Optical Cable) consists of two SFP+ modules and a fiber cable assembly, transmitting up to 10Gbps in each direction over a OM3 MMF with distance up to 300m. The SFP+ AOC can be used as an alternative solution to SFP+ transceiver, while providing improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
Features
- 10Gb/s serial optical interface
- 850nm high-speed VCSEL and PIN receiver
- Support 10Gb/s transmission distance up to 100 meters with MMF
- Operating case temperature 0ºC to +70ºC
- Single 3.3V power supply
- Mechanical specifications compliant with SFF-8432
- Electrical specifications compliant with SFF-8431
- Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
- Typical power consumption 200mW
- I2C communication bus
- Hot pluggable
- RoHS-6 compliance
10GBase-AOC SFP+ Ethernet Active Optical Cables
The 10GbE SFP+ Ethernet active optical cables (AOCs) are direct-attach fibers equipped with SFP+ connectors, designed to operate over Multi-Mode Fiber (MMF). These AOCs adhere to the SFF-8431 SFP+ MSA standards. Primarily employed for establishing short-distance connections ranging from 1 to 100 meters, such as switch-to-switch or switch-to-GPU links, these cables offer a cost-effective alternative to utilizing discrete optical transceivers and optical patch cables. They present an efficient solution for 10Gbps connections within racks and across adjacent racks.
